Product Name:Portable Hardware Laser Marking Machine GH-6910/6920

Product Details:
Model:
GH-6910/6920
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets
Place of Origin:
Min. Order:
FOB Price:
USD 0.00-0.00 /
Shipping Terms:
1
Shippment Port:
Shanghai Port
Payment Terms:
L/C ,T/T,Western Union
Show Buyers your Ability to Supply:
Production Capacity:
200 Set/Sets per 45 Days
Delivery Time:
Packaging:
Wooden Package

Detailed Product Description:

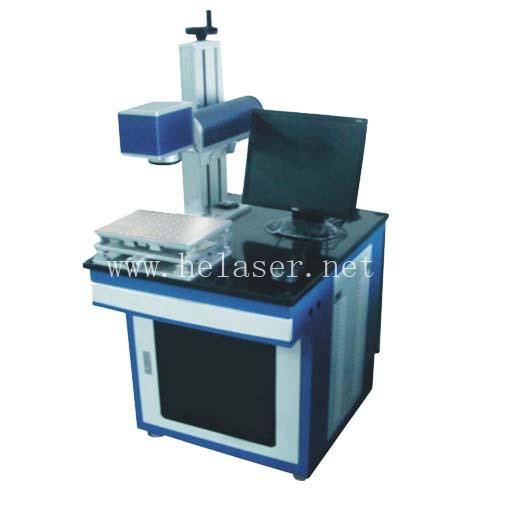

Portable Hardware Laser Marking Machine



Product Introduction

The machine can be widely used in marking on many products, specially suitable for hard-

ware tools, knife and kitchen ware, plastic products, keyboard of the computer,metal art craft,

button, IC, bottle packing, glasses frame, cleaning and bathing wares,etc. The machine can

mark perfectly and it can avoid forging effectively .



Features

1. No need constant temperature and humidity,and water cooling equipment.

2. Internationl currency software,strong function,easy for learning and operate.

3. Small size,light weight,convenient for installing on the production line.

4. Long life, long continuous working time



Specifications
1 Standard wall plug operation and high electrical efficiency
2 No water cooling

3 It can mark colorized
4 High quality focusable beam

5 High repetition rate

6 Optimized pulse duration

7 Exceptionally high reliability
8 Maintenance-free operation



Technical Parameter

Type

GH-6910

GH-6920

Laser Pump Mode

Diode pumped

Laser Wave Length

1064nm

Laser Power

10W

20W

Laser Beam Quality

M2<1.5

Max Marking Speed Dots/min

12000mm/s

Max Marking Range

110mm*110mm

Laser Head

1

Focus

160mm

Focus Diameter

0.015mm

Min character size

0.1mm

Cooling Method

Air Cooling

Guarantee Period

12 months

Applications Materials

Metal and Partial Nonmetal

Life time

500,000 hours

Electrical Source

AC220V±10% 50-60Hz

Power of Machine

500W

600W

Software

Special Chinese and English marking software

Marking Precision

0.005mm

Repeat Precisiion

0.005mm
